The components you need to integrate Groovaly's patented Bloom fan-drawer system into a custom furniture project.

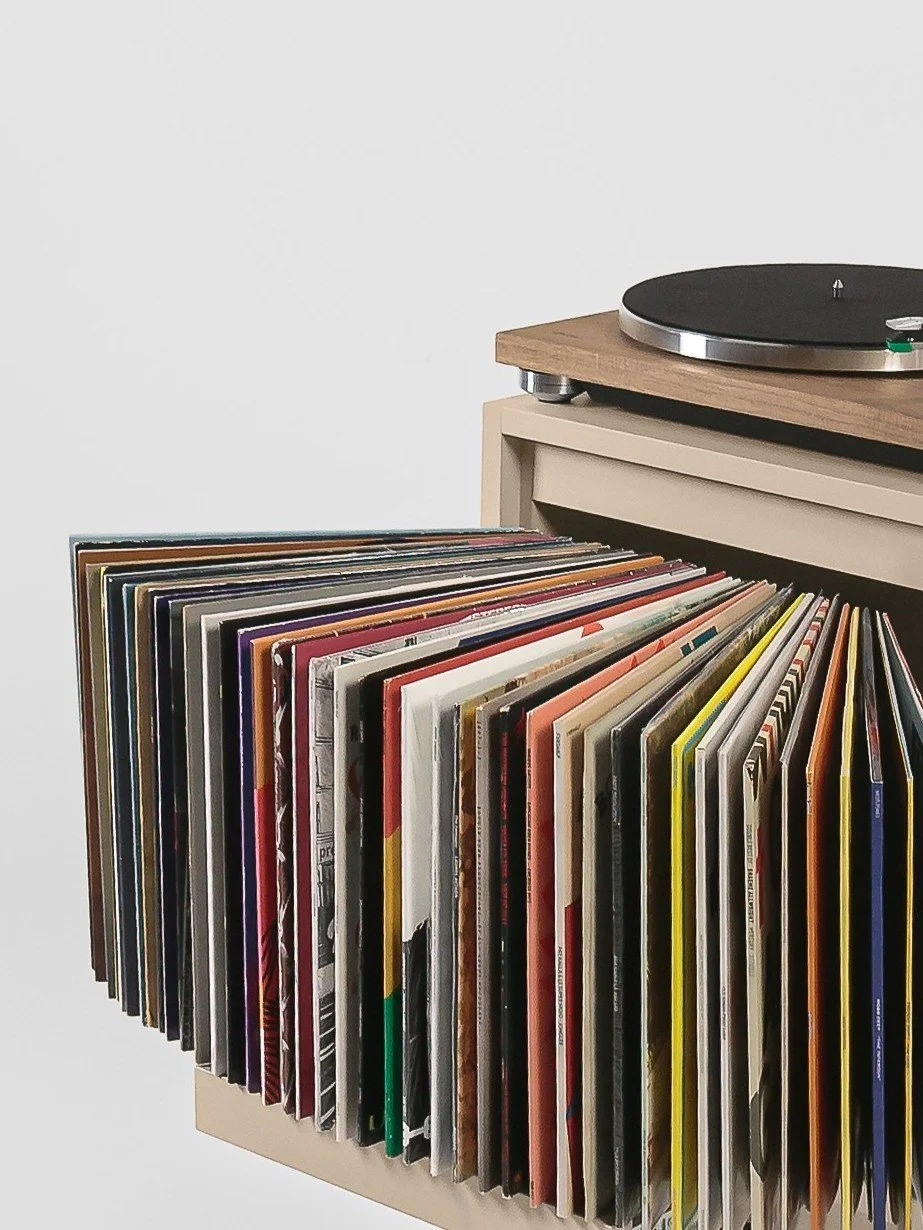

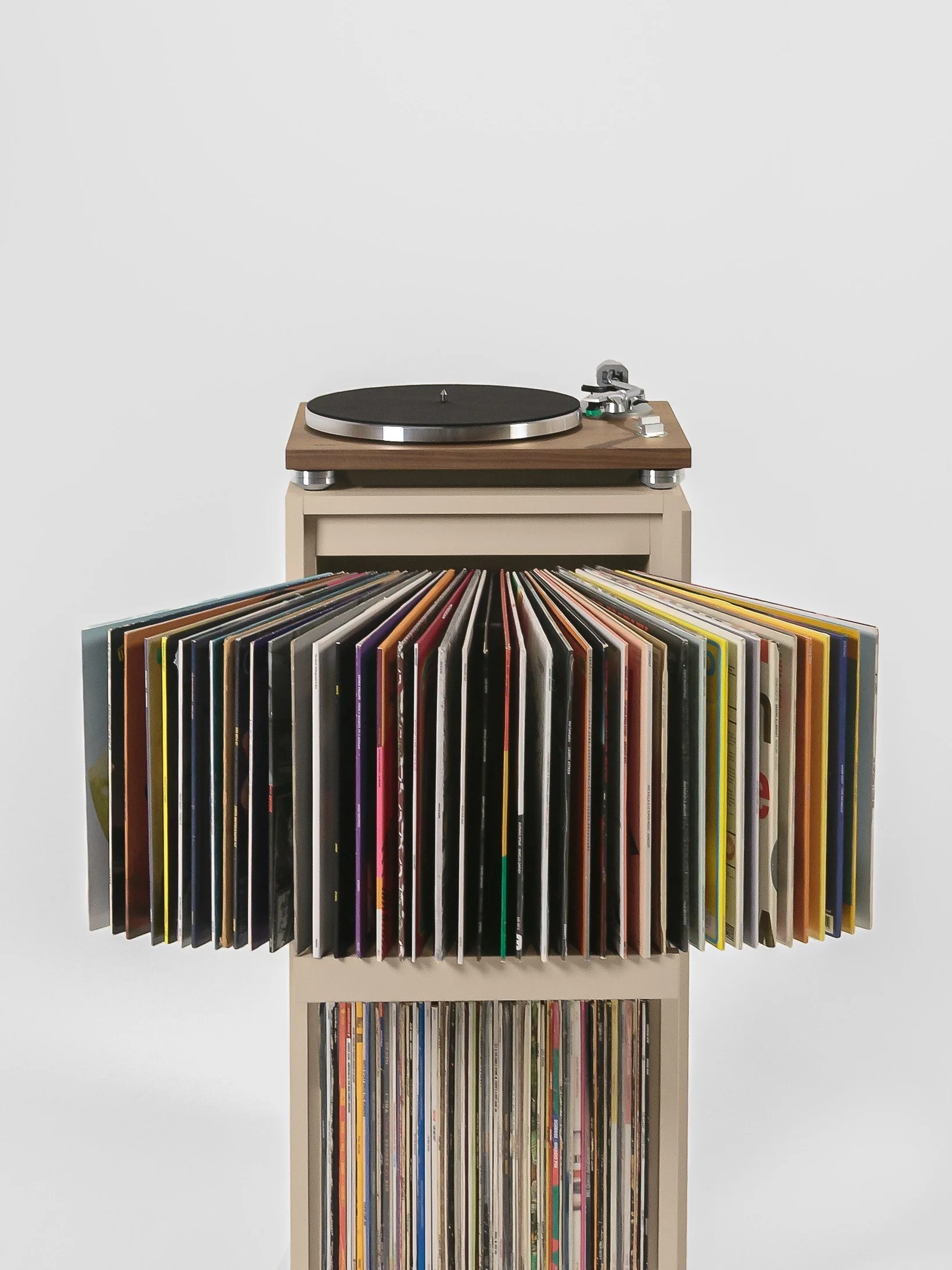

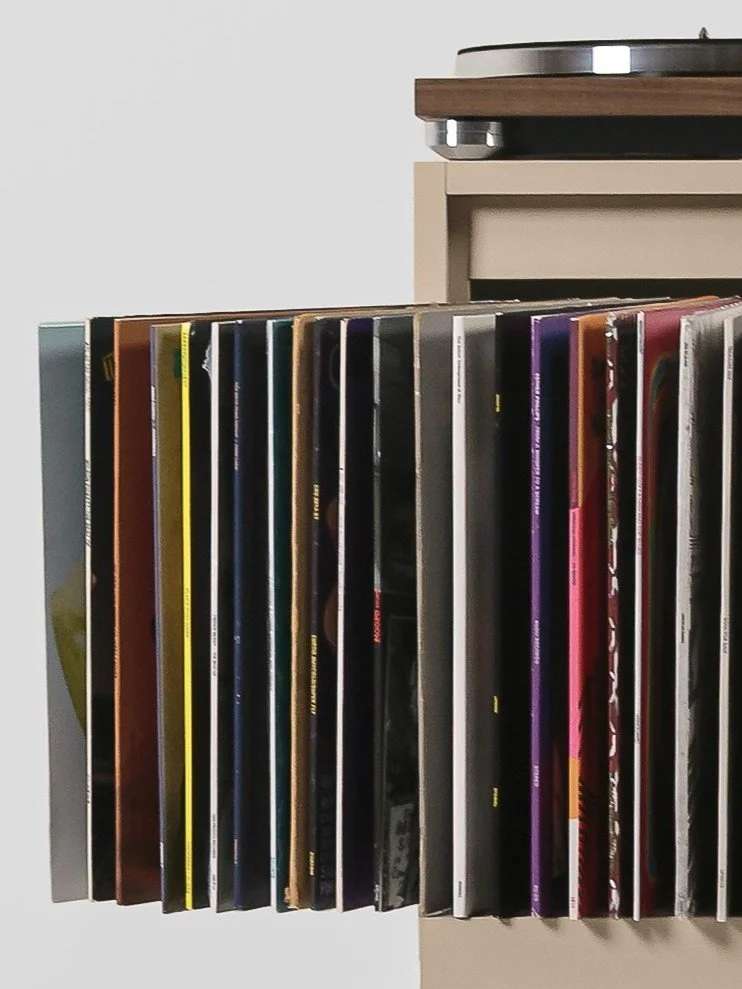

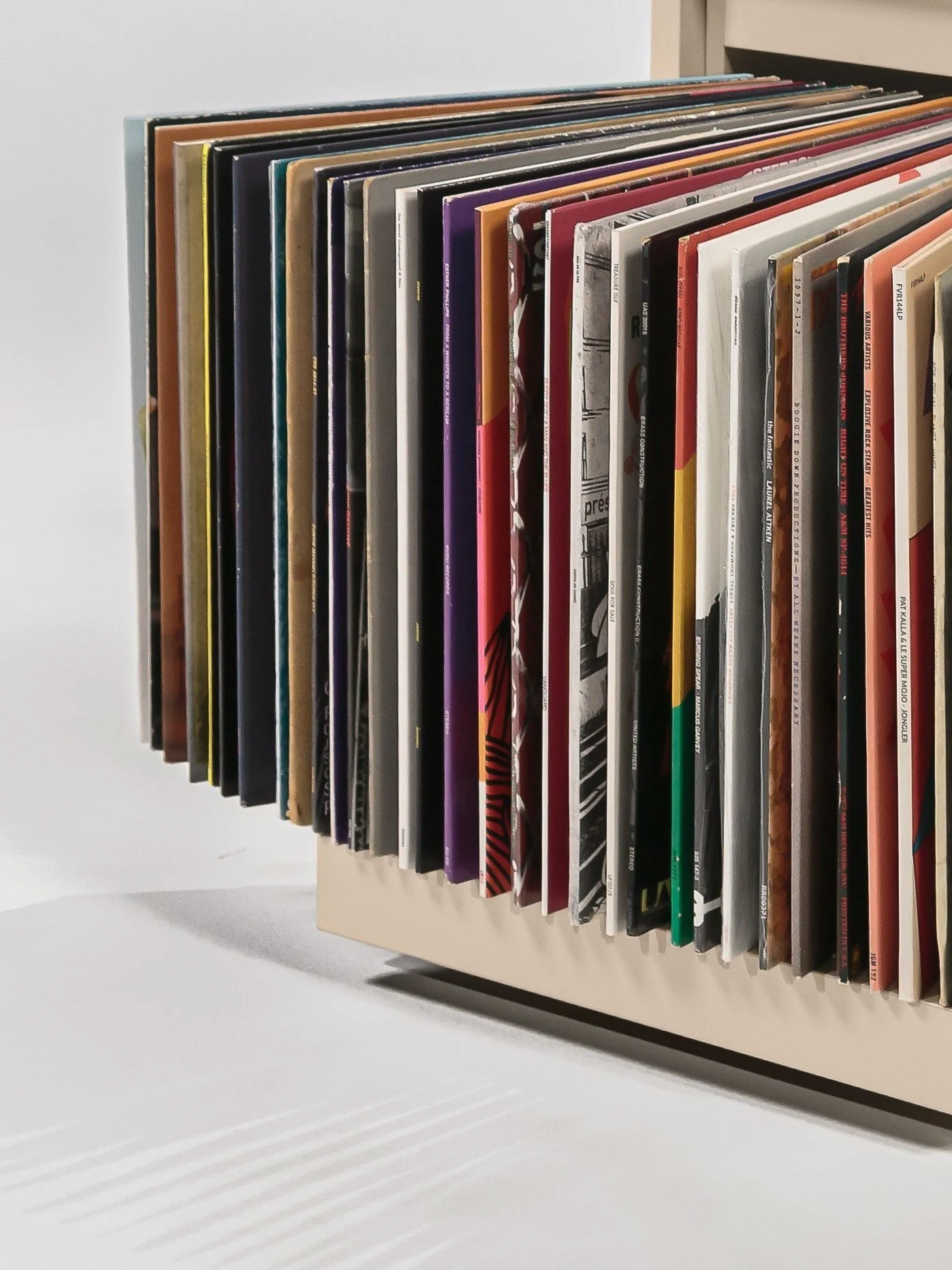

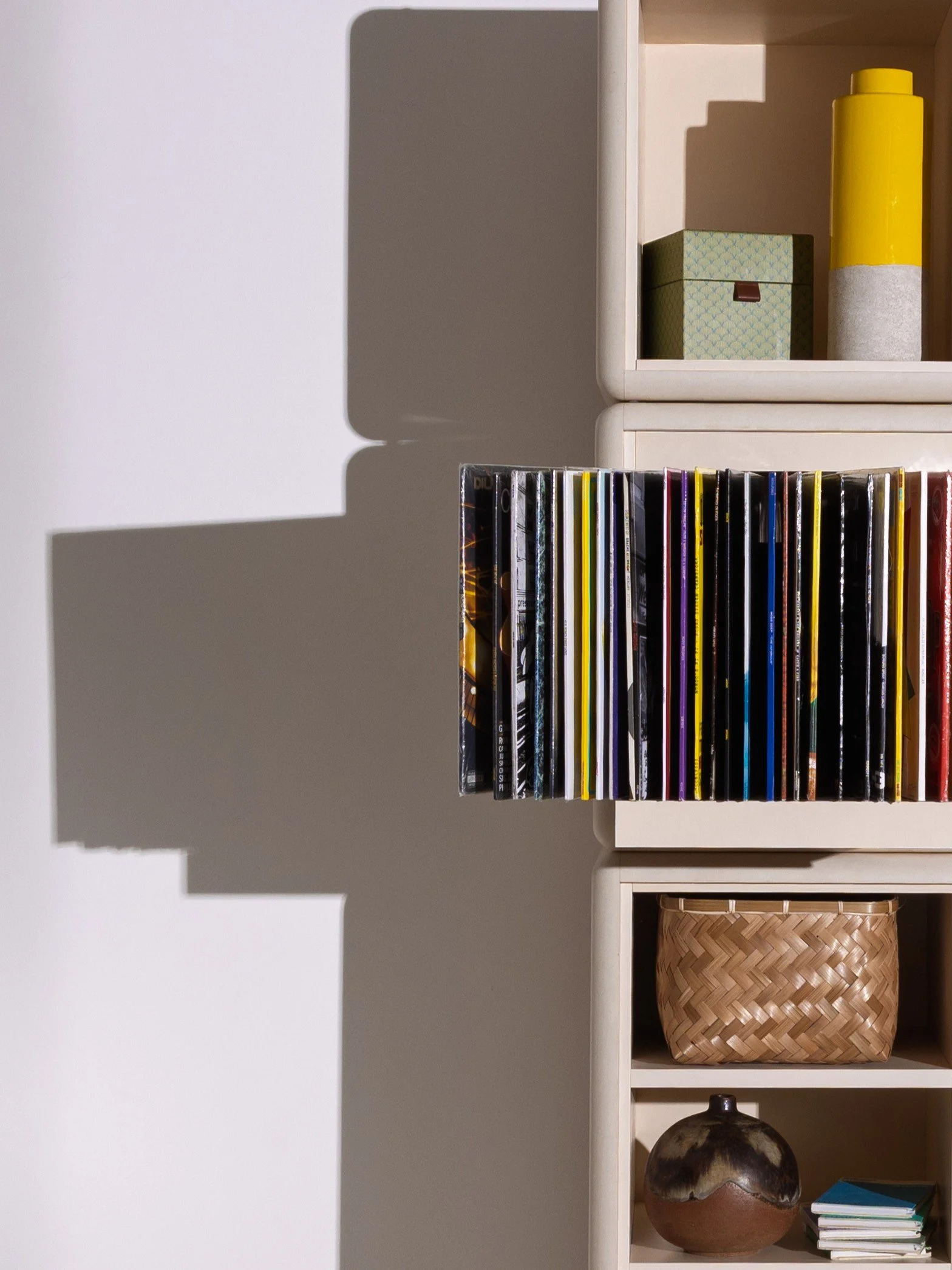

Bloom lets records fan out like the pages of a book — every sleeve visible at a glance, without removing a single record. The Bloom Integration Kit gives cabinetmakers, interior professionals and experienced makers the dedicated components to build this system into their own furniture project.

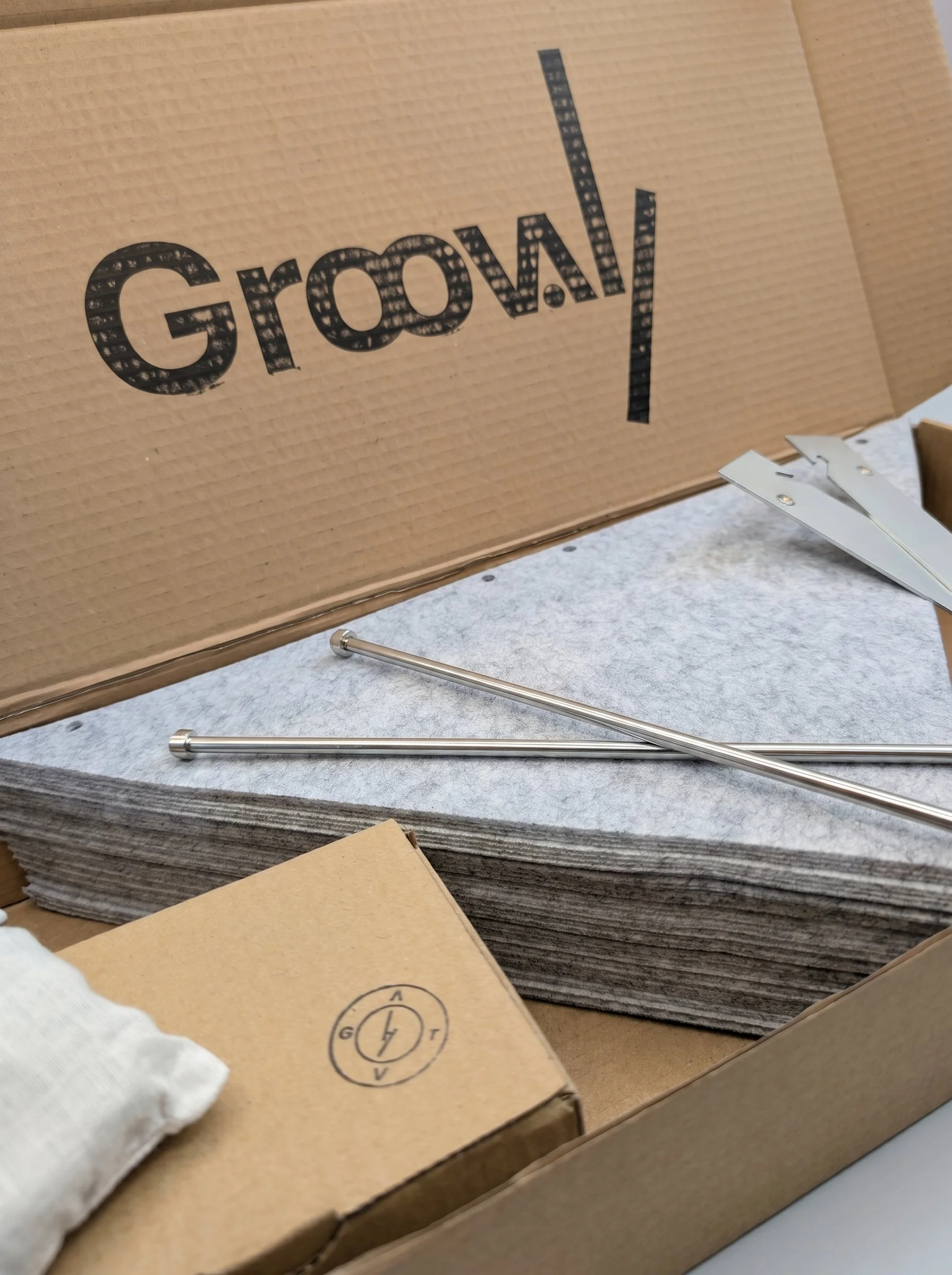

Included in the kit

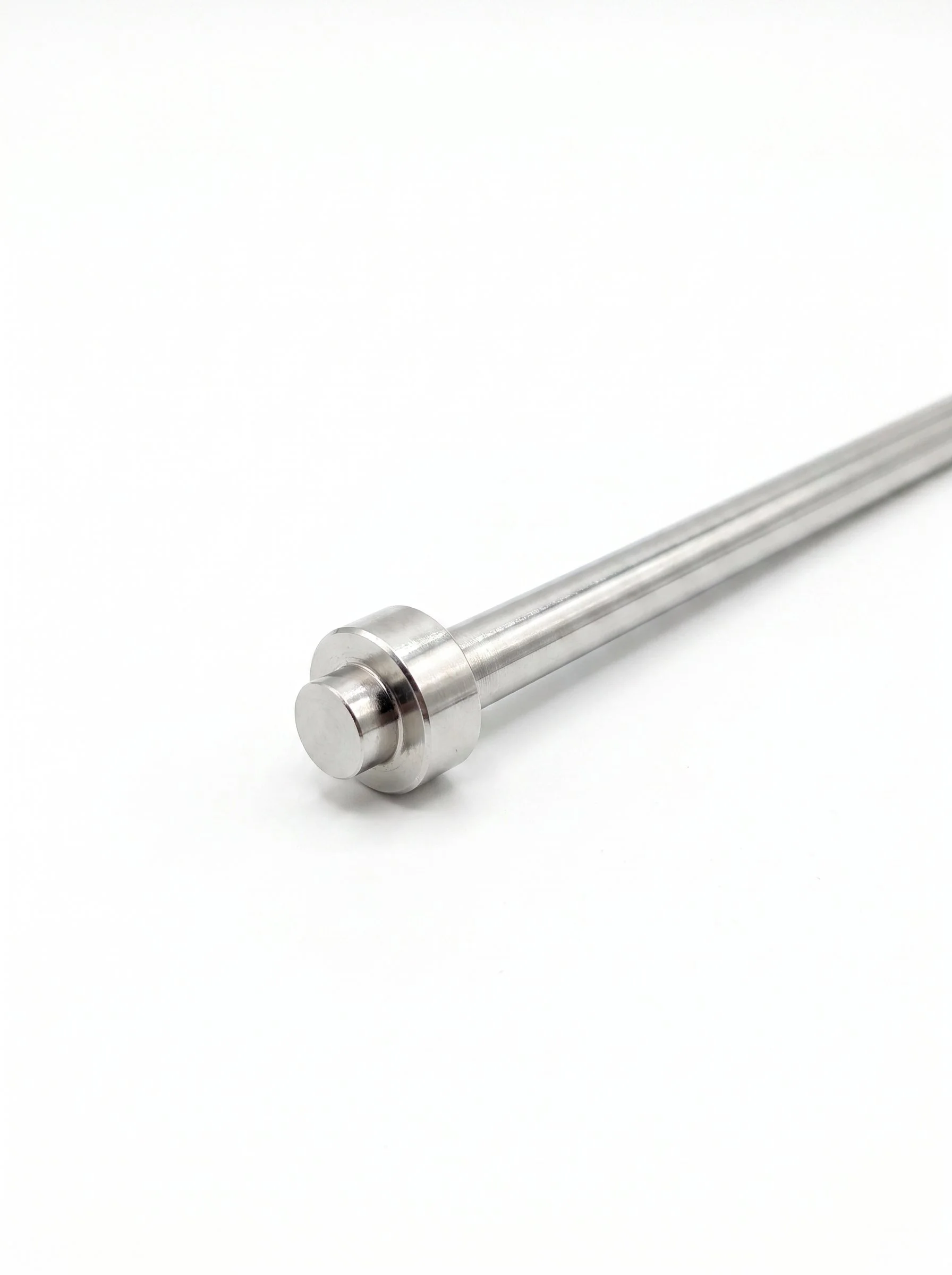

2 Bloom metal rods
Required spacers

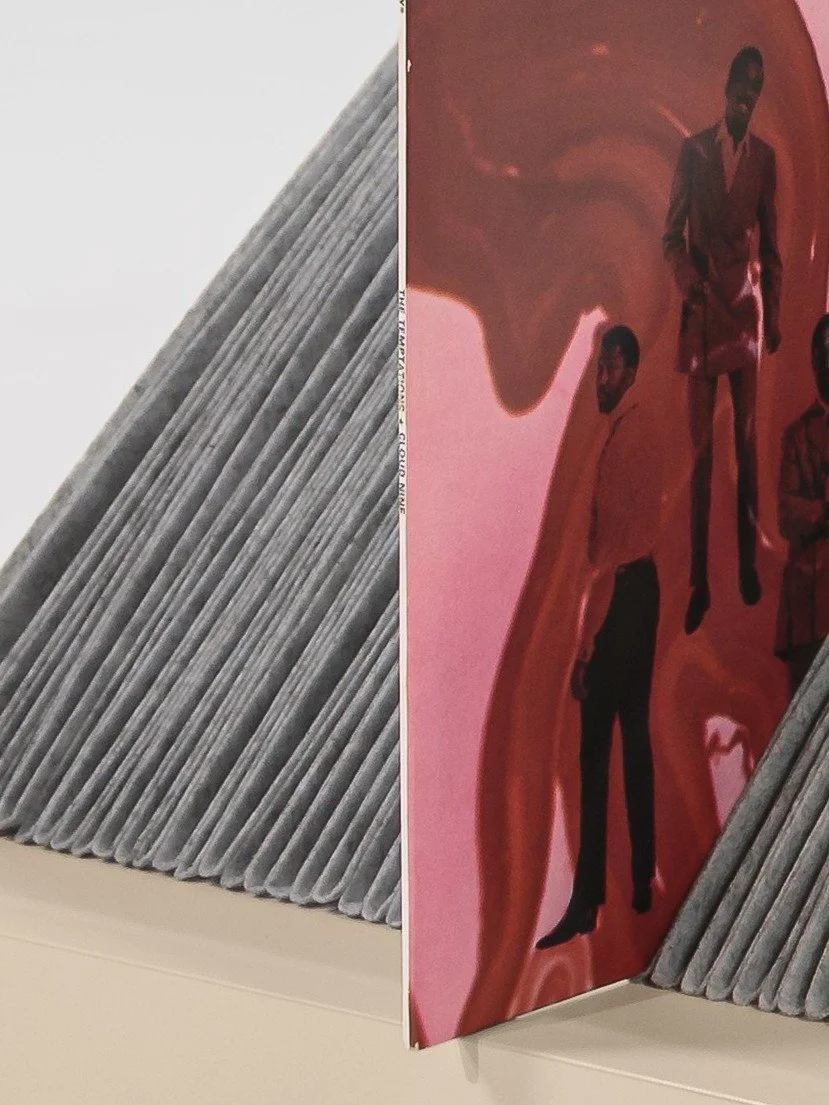

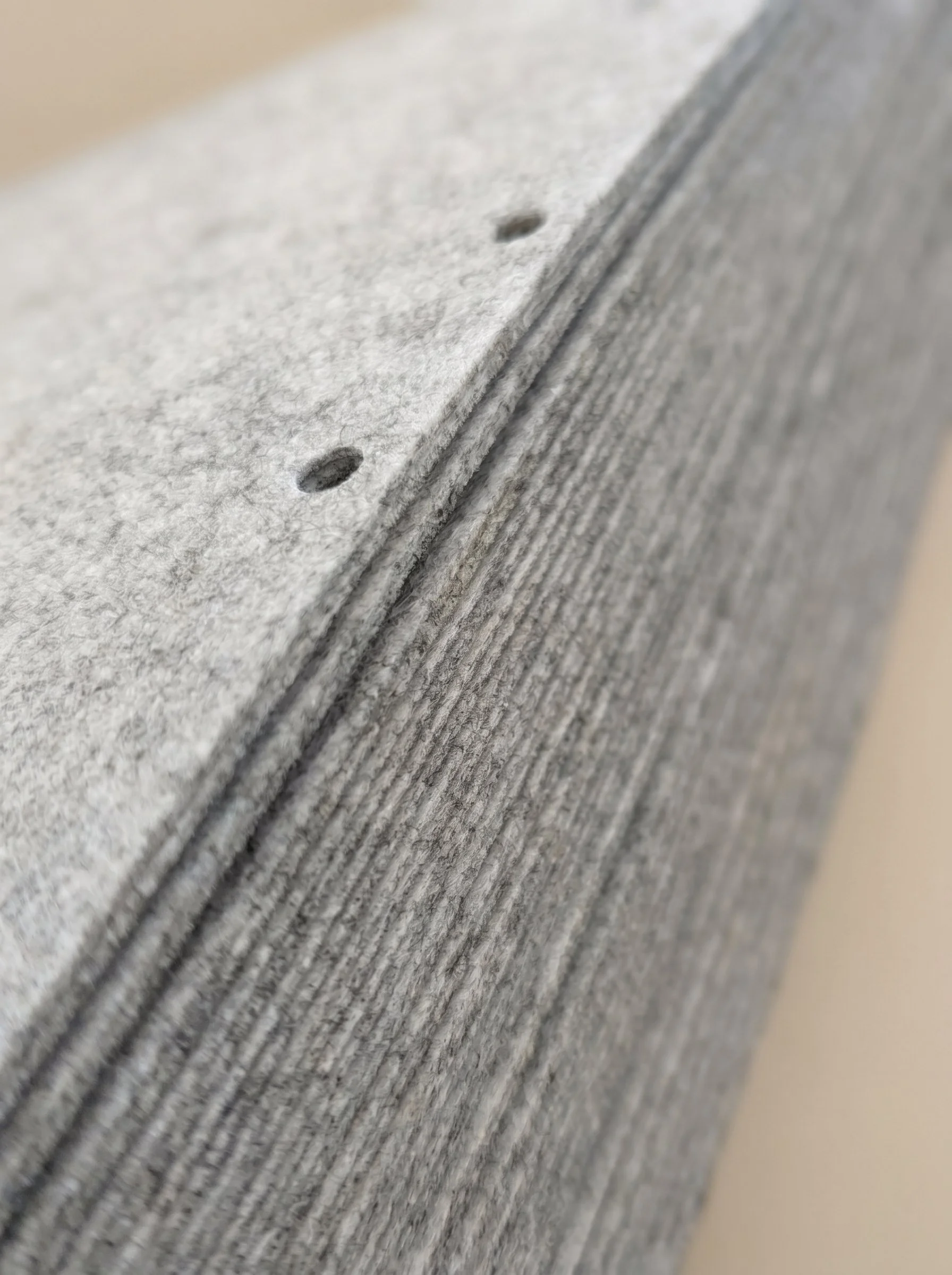

Felt record sleeves — chosen to protect covers and ensure smooth, silent browsing — including a few spare sleeves

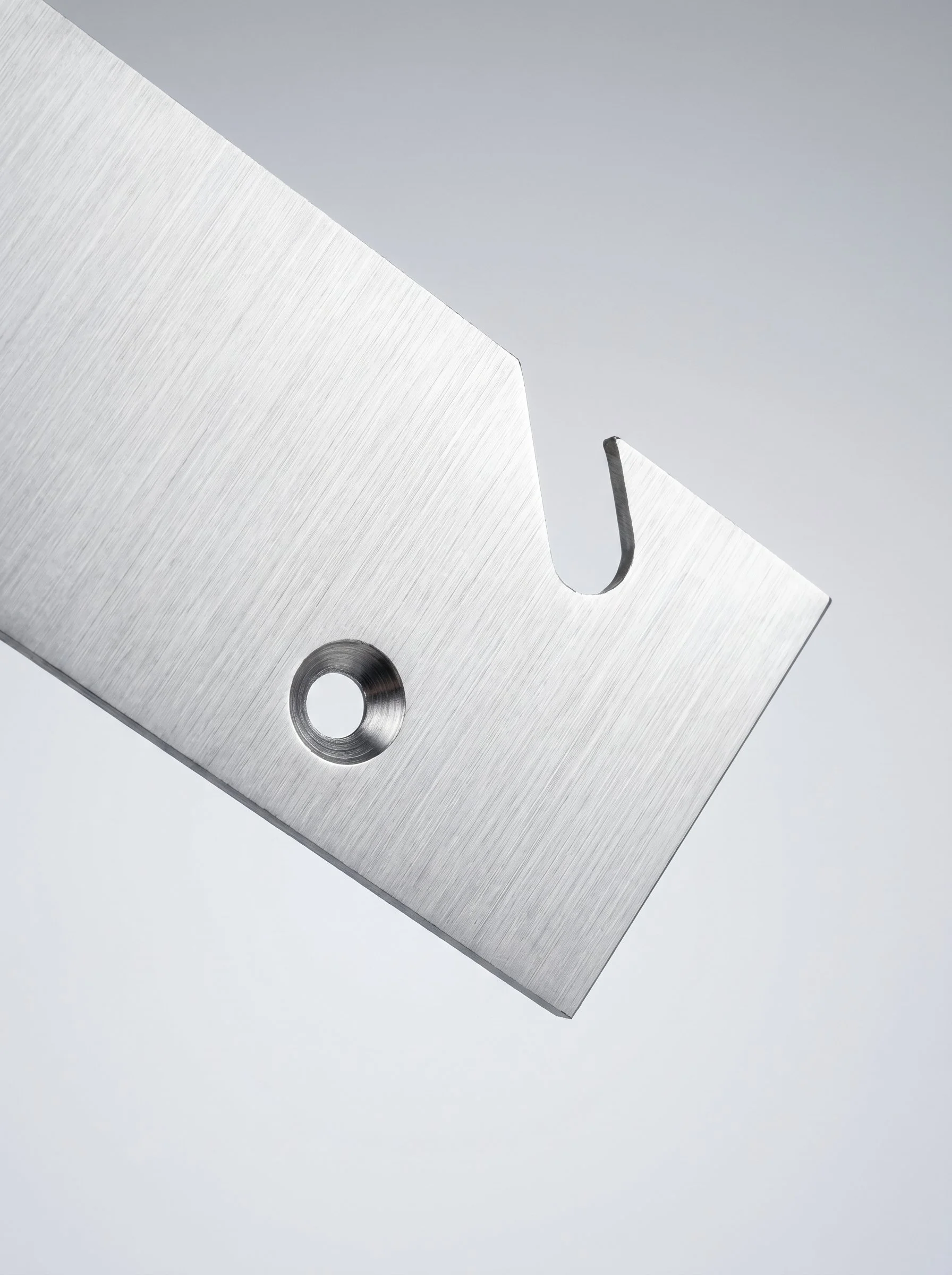

Side metal plates
Dedicated screws
Technical integration guide
Each kit holds around 50 LP records.
Not included
The buyer must build a compatible drawer structure — typically a horizontal bottom panel placed under the records, and a vertical rear panel used to fix the side metal plates and support the fan-drawer system. The sleeves hang from two horizontal metal rods, mounted on two vertical supports fixed at both ends of the rear panel.
Shipping
Worldwide shipping available. Shipping calculated at checkout.
We deliver within approximately 2–6 weeks, depending on destination and stock availability.
Quantities may be limited.
Taxes included where applicable. For orders outside the EU, import duties and local taxes may be charged upon delivery.
Technical requirements
This kit requires:
sufficient internal height for LPs, drawer base and drawer slides
a rigid rear panel or vertical support
drawer slides
a stable furniture structure
panels of at least 19 mm (recommended)
careful installation
wall fixing if the furniture can tip forward
For drawer slides, we recommend models rated for at least 35 kg. Brands such as Blum and Accuride offer suitable options for this type of integration, provided the selected model matches the project requirements.
Recommended compartment dimensions
Depth
The distance between the rear of the drawer and the front edge of the records is 339 mm. Including the drawer bottom panel, we recommend a minimum internal compartment depth of 360 mm.
Width
The metal rods supplied are designed for a rear drawer panel width of exactly 326 mm. Depending on the drawer slide model and position — side-mounted or undermount — the internal compartment width should measure between 336 mm and 360 mm.
Wider configurations are possible, but require sourcing your own metal rods and a careful structural assessment. A fully loaded record drawer is heavy.
Height
The distance between the top of the drawer bottom panel and the ceiling of the compartment must be at least 321 mm. Taking into account the drawer panel thickness and slide position — side-mounted or undermount — we recommend a minimum internal compartment height of 368 mm.
Compatibility
The Bloom Integration Kit is designed for custom furniture, modified structures or compartments with sufficient internal space.
It is not compatible with standard record cubes that provide only the minimum height required for LP storage. Once the drawer base, slides and required clearance are added, there is not enough room for the records and the Bloom mechanism to operate correctly.
Before ordering, verify that your project dimensions meet the requirements above.
Patent and protected use
The Bloom drawer features Groovaly's patented browsing mechanism — FR2504530.
Each kit allows one Bloom integration. Commercial reproduction, series production, resale of Bloom-compatible furniture, or manufacturing of similar components requires a separate written agreement with Groovaly.
Responsibility
The kit is designed to be integrated into a sufficiently rigid and stable structure. Drawer construction, slide selection, furniture fixing and installation safety remain the buyer's responsibility. Groovaly cannot be held responsible for installations that do not follow the provided technical guidelines.
